SPECTRA FORGE
From Page to Power – Accelerate your print productivity
➕ HD-like quality up to 600 × 1200 dpi
Grey scale and Rich Text with professional precision.
➕ High-Speed Output
100 ppm A3 size at low cost, ensuring maximum productivity.
➕ Compact & Reliable

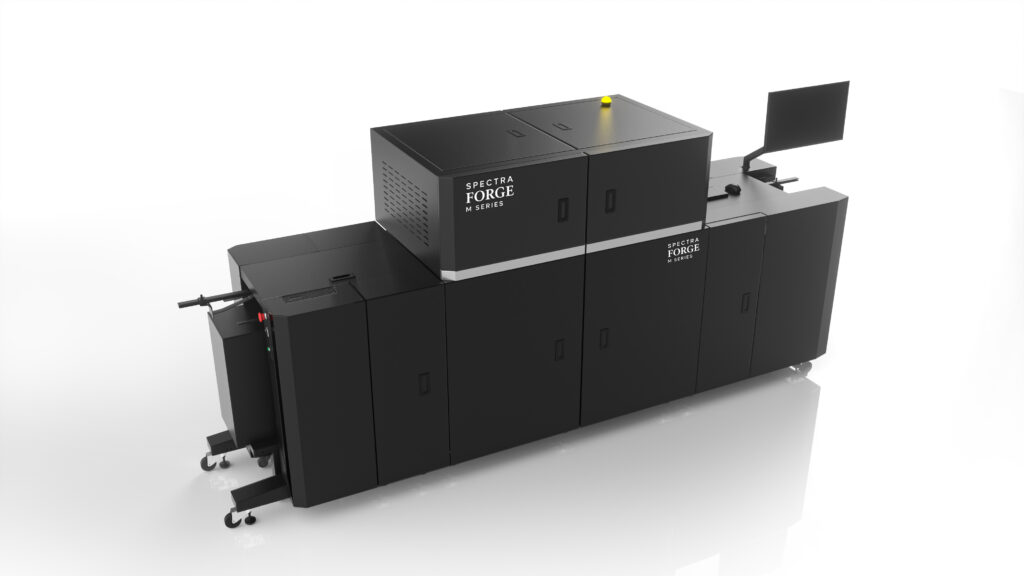

Spectra Forge M-330 Sheet-fed Inkjet Digital Printing Press – designed for book printing and graphic arts with high capacity and low cost.
SPECTRA FORGE - Strength
- Latest high-speed circulation on demand piezoelectric industrial-grade printhead with optional HD resolution.
- Integrated self-developed nozzle control board & intelligent software for superior image quality.
- Patented suction-type double-side feeding technology for ±0.4mm duplex registration.
- Stable ink supply control eliminates ink breakage or white lines.
- Supports single pass variable dot printing for layered outputs.
- Accurate motion control board coordinates sensors and servo motors for precise sheet handling.
- Adaptable to a wide variety of media: wood-free, newsprint, uncoated, carbonless, and wove papers.
- Black & White Printing – Perfect for POD applications (books, manuals, internal texts).
- Double Color Printing – Up to 1200 dpi with embedded tracking, ideal for government documents.
- Bill Printing – Specially suitable for thinner papers like carbon-free sheets.
- Full-color variable data printing expands business opportunities.
SPECTRA FORGE - Specifications
| Item | Parameters |
|---|---|
| Print Head | High-speed on demand piezoelectric industrial grade (variable point printing) |
| Color Mode | B&W, Dual-Color, Full Color |
| Resolution (dpi) | B&W 600×1200 dpi (Optional 1200×1200 dpi HD Unit) Dual-Color 1200×1200 dpi Full Color 600×1200 dpi |
| Media Size | 330mm × 560mm |
| Max Printing Size | 330mm × 560mm |
| Print Speed | 100 A3 pages/min, 200 A4 pages/min (80gsm under ISO/IEC 19752) |
| Device Performance | AMPV up to 2 million; Mechanical life 200 million (A4 cycles) |
| Suitable Paper | Woodfree / Newsprint / Inkjet Coated / Carbon-free / Wove papers |
| Suitable Paper Gram | Single: 55–200 gsm, Duplex: 55–120 gsm |
| Paper Capacity | Input: Max 4000 sheets, Output: Max 4170 sheets (80gsm) |
| Output Method | Movable Stacking Trolley (2 options available) |
| Ink Type | Water-Based Pigment Ink |
| Machine Size | L-3415mm × W-890mm × H-1636mm (5000mm with extension) |
| Machine Weight | Net: 950kg, Packed: 1250kg |
| Voltage / Power | 220V / 11A / 1.6kW (Drying off) – 45A / 12kW (Drying on) |
| Working Environment | Temperature: 22–27℃, Humidity: 45–60%, Flatness: ±2mm |
